Award Winning

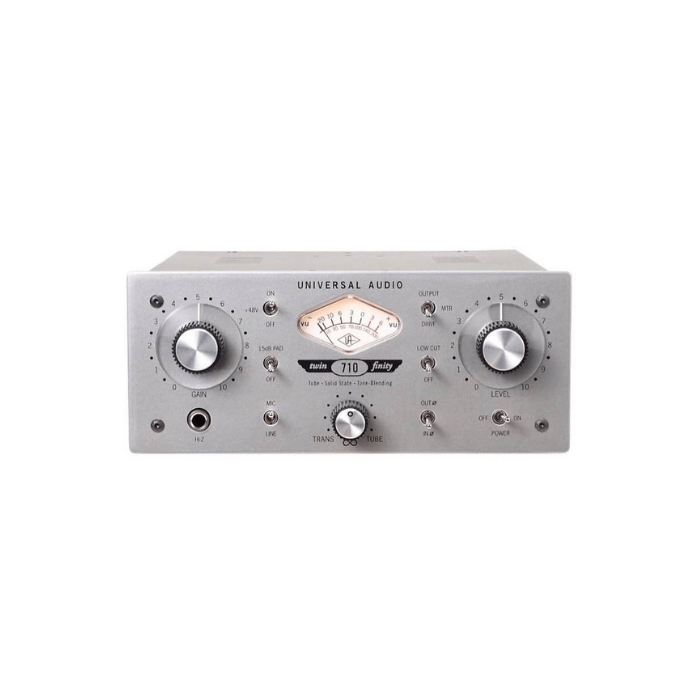

The award-winning 710 Twin-Finity™ is a radical UA mic preamp design that combines both the classic retro warmth of tubes with the transient bite of solid-state, all in a 2U, half-rack unit. The 710 was created specifically to add the tonal versatility and sonic inspiration missing from generic audio interface preamps.

Best of Both Worlds

Tone blending is continually variable between 100% tube and 100% solid-state, offering a practically infinite range of unique preamp tones, plus the ability to easily dial-in your own signature sound. There are lots of sensibly priced solid-state and tube preamplifiers out there, but the 710 Twin-Finity is the only one that offers the best of both worlds — as well as everything in-between — all in one box, and within reach of any serious project studio’s budget. Includes a 19″ rack-kit for mounting one or two units.

Innovative Circuit Design

The key to the 710 Twin-Finity’s sonic flexibility lies in its innovative circuit design, featuring a solid-state transimpedance input amp simultaneously driving separate, phase-aligned tube and solid-state gain stages, which are then summed to a single output. The mix between the 310 volt single-ended class-A triode tube stage and solid-state transimpedance stage is controlled via the “Blend Knob” labeled “8”. Blending is continually variable between 100% tube and 100% solid-state offering a practically infinite range of unique pre-amp tones and the ability to easily dial-in your own signature sound.

Preamp Features

• Twin-Finity™ Tone-Blending Mic/Line Preamp & Hi-Z Instrument DI
• Dual-Path 310 volt Class-A Tube and Transimpedance Solid State Preamp
• Phase-Aligned “Tone-Blending” of Tube and Solid State
• Dual Gain Stages: Wire with Gain to Creamy to Crunchy
• Discrete JFET DI with 2.2M ohm Ultra Hi-Z impedance
• Monolithic Balanced Output Stage
• 70dB+ of gain, +48V Phantom, Pad(-15dB), Phase Invert, and Low Cut Filter(75Hz)
• Output and “Drive” backlit VU metering
• Portable, Rack-Mountable design for Studio, Desktop or Stage
• 19” Rack Kit Included
• Front Panel Hi-Z Input (switched from Mic/Line automatically via Jack Detect)
• Rear Panel XLR Mic Input, XLR Line Input and XLR Line Output
• Universal Internal Power Supply
• Heavy-Duty Metal Construction
